GARMIN | INSTINCT 2s

Following the success of the purpose-built, rugged Instinct GPS-watch, the ID team was challenged with a complete redesign on the second generation. To appeal to a wider range of female users, the watch would again be available in the 45mm size as well as a new 40mm design.

ANTENNA CONSTRUCTION

Explored various construction methods for the antenna & bezel assemblies for both the 45mm and 40mm SKUs.

Landed on a design that would allow flexibility with a modular bezel to create other possible SKUs.

DISPLAY EXPLORATION

Both the 45mm and 40mm SKUs would utilize the same screen componentry. We conducted a quick lens-mask exploration on how to maximize the visible pixels as well as create creative UI breakups.

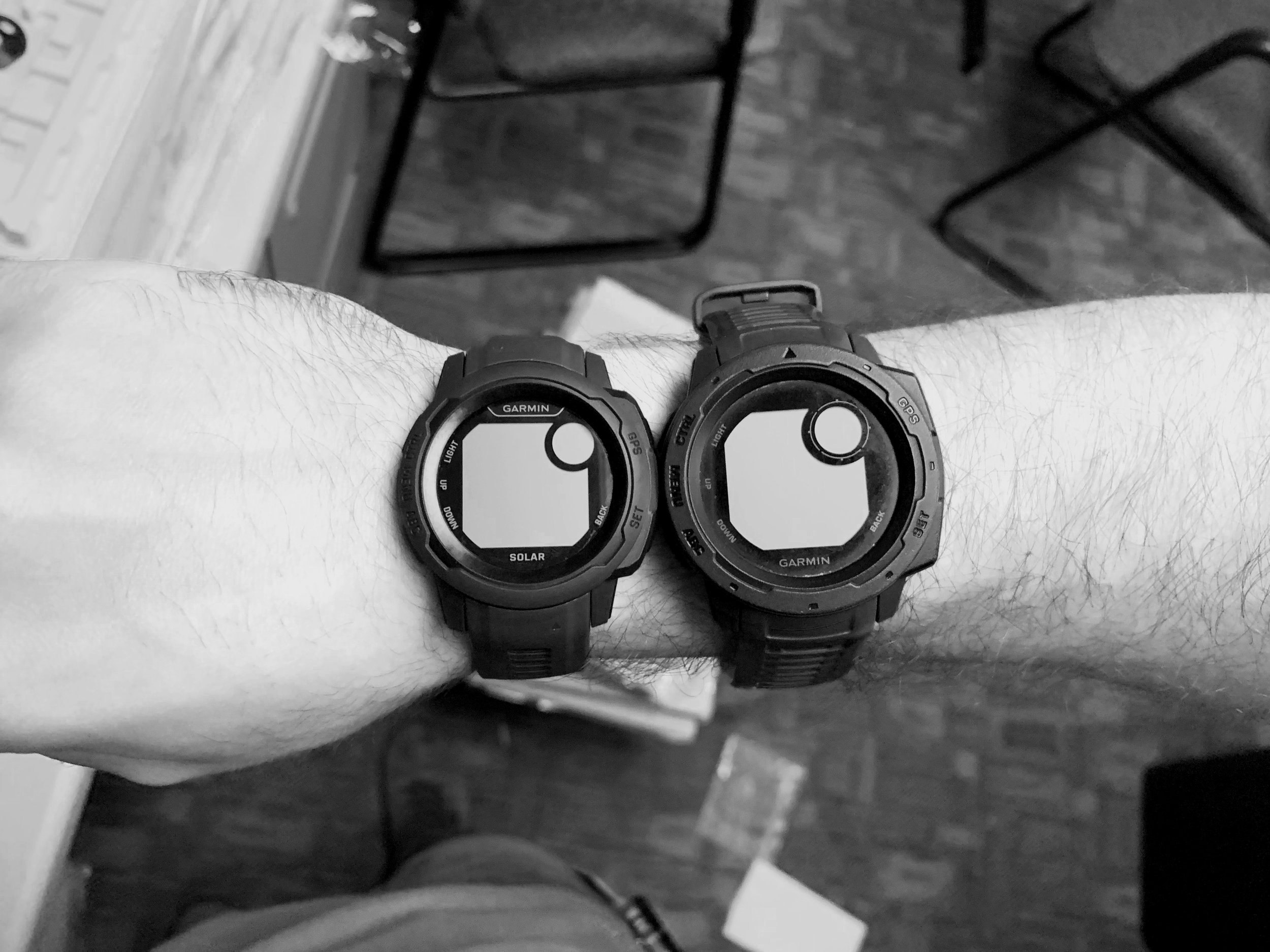

  • [40mm] Instinct 2s vs [45mm] Instinct

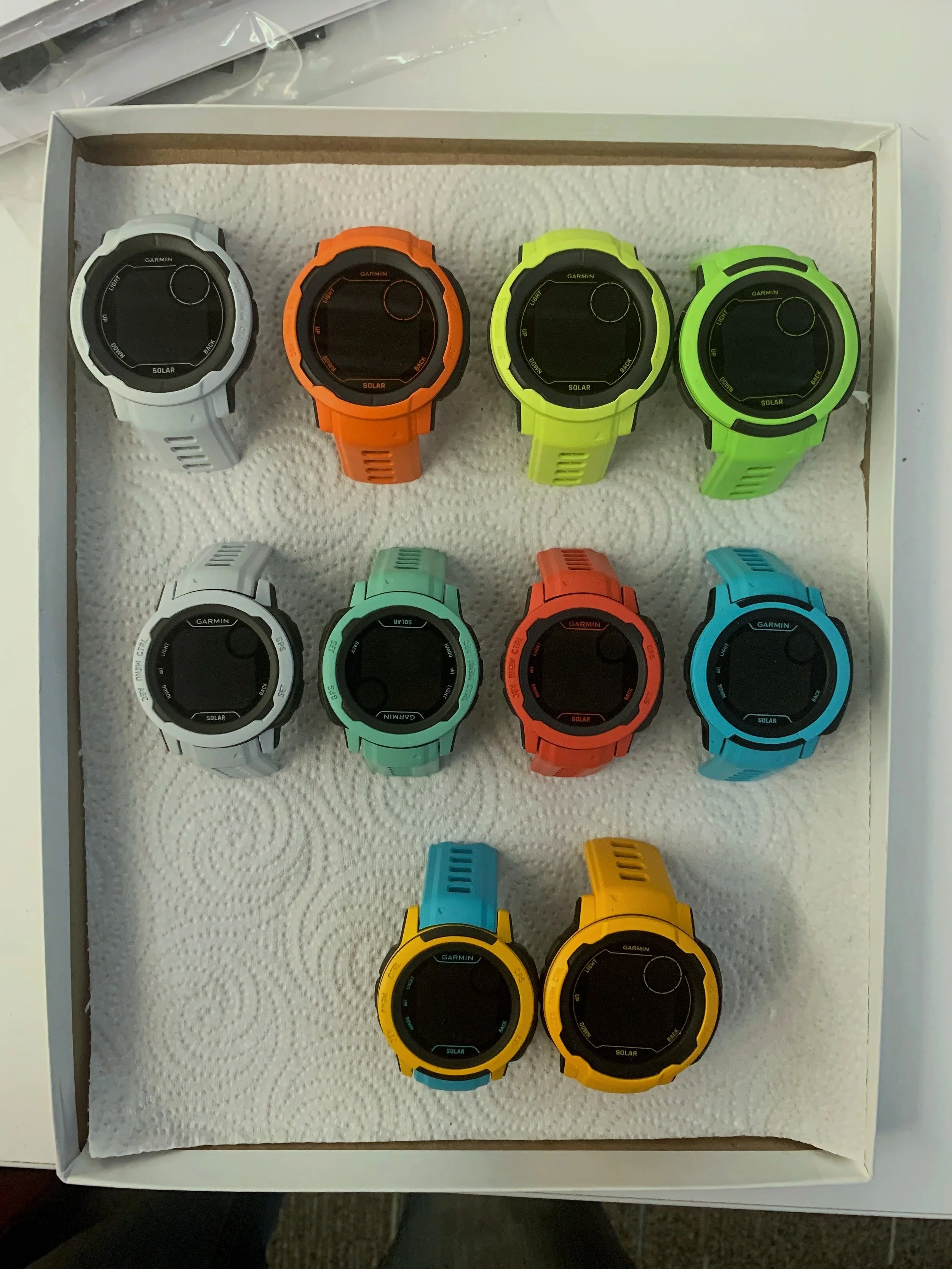

  • CMF Models

  • Machined Rev A

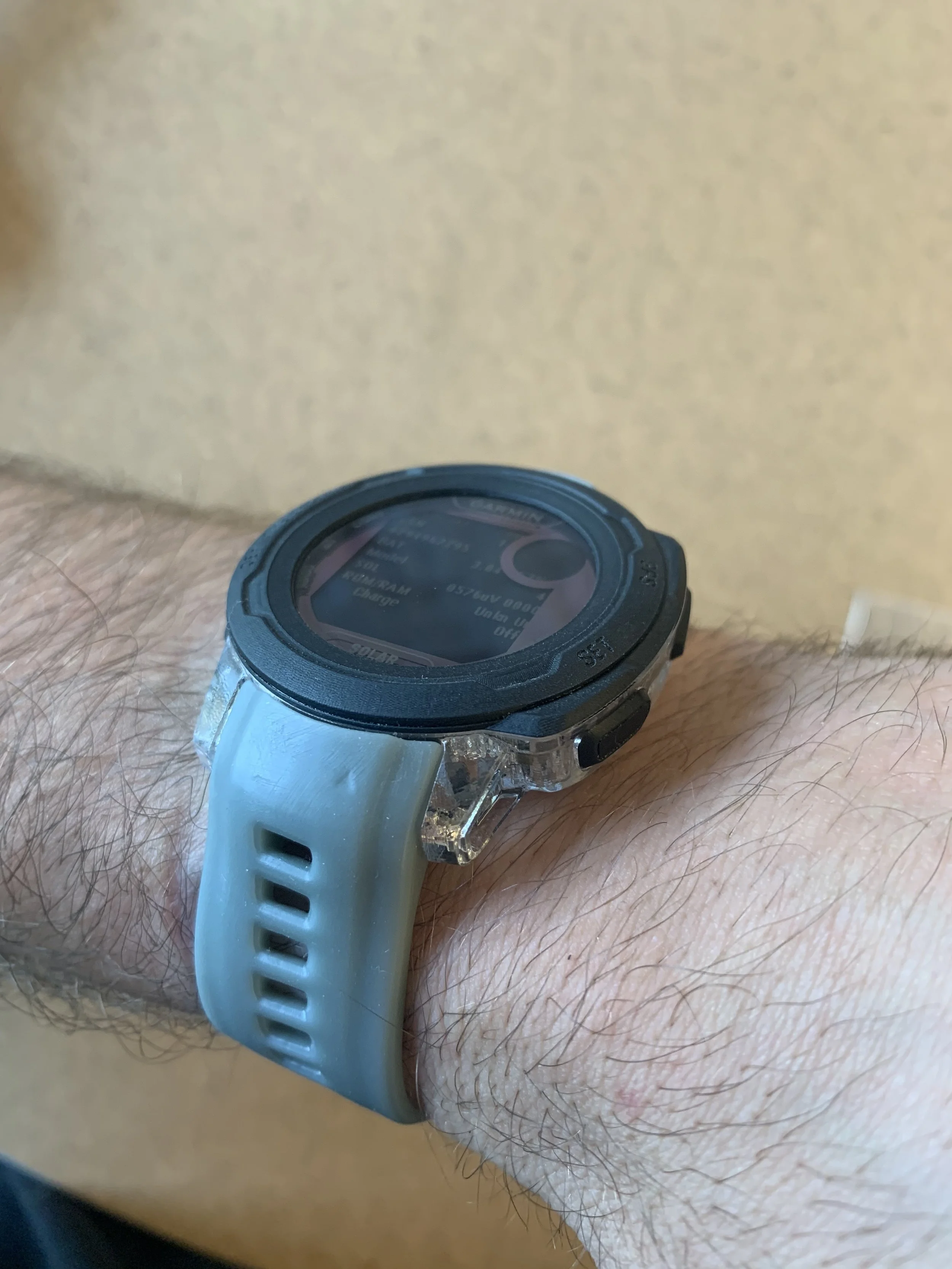

  • Machined Rev A Sample & 3D printed Silicone Band

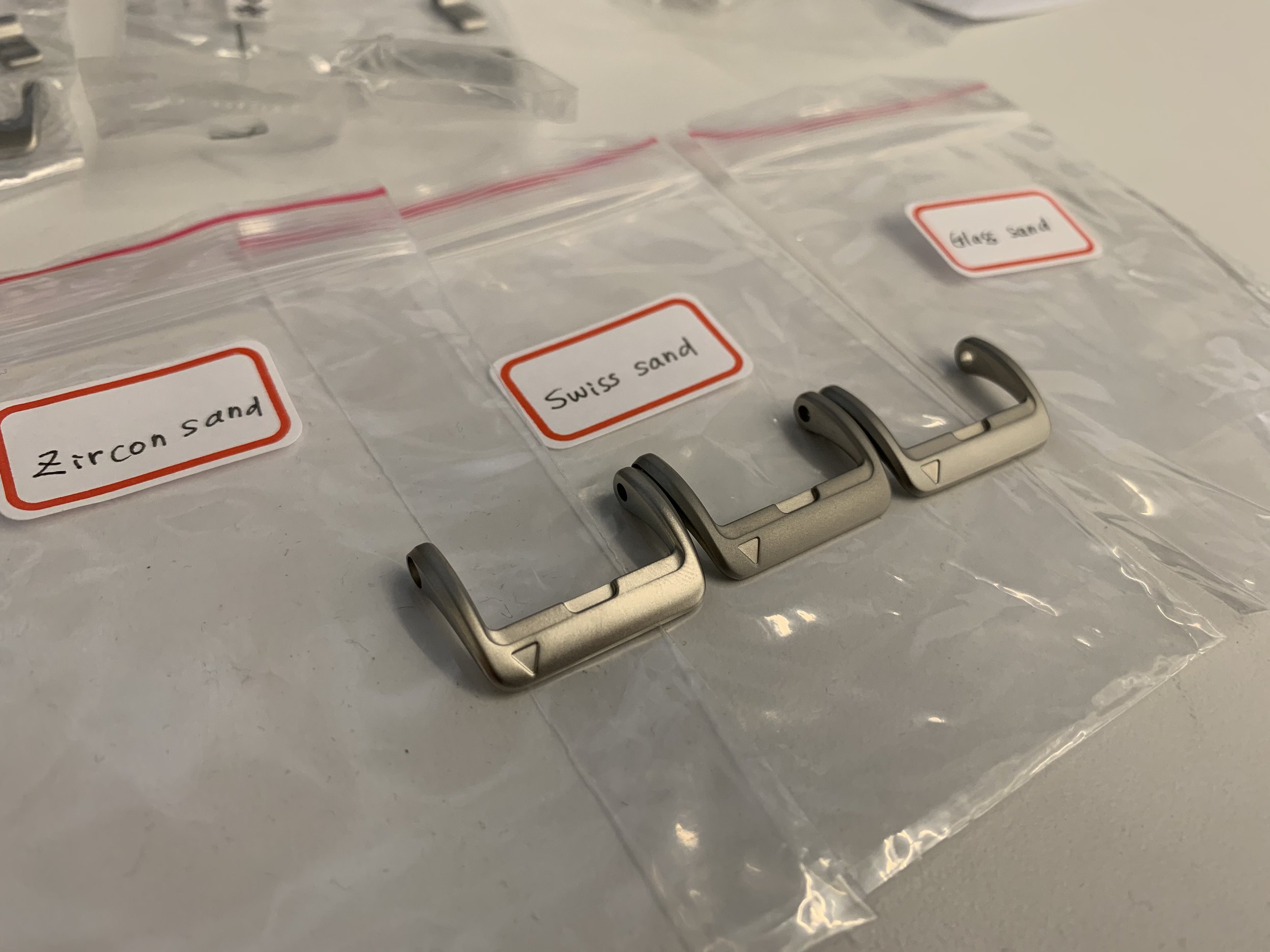

  • Metal Finish

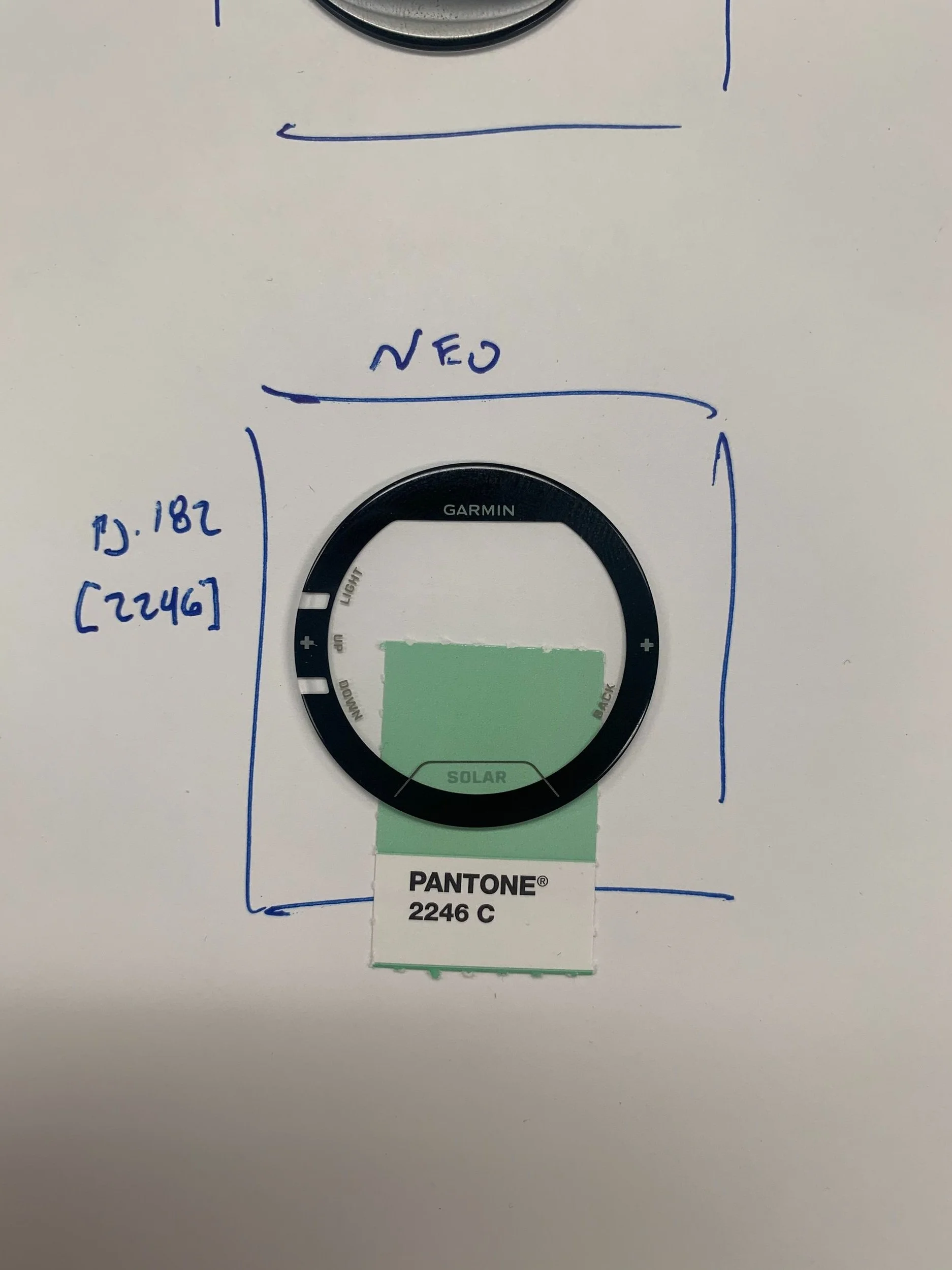

  • Lens Art

  • Pad Print

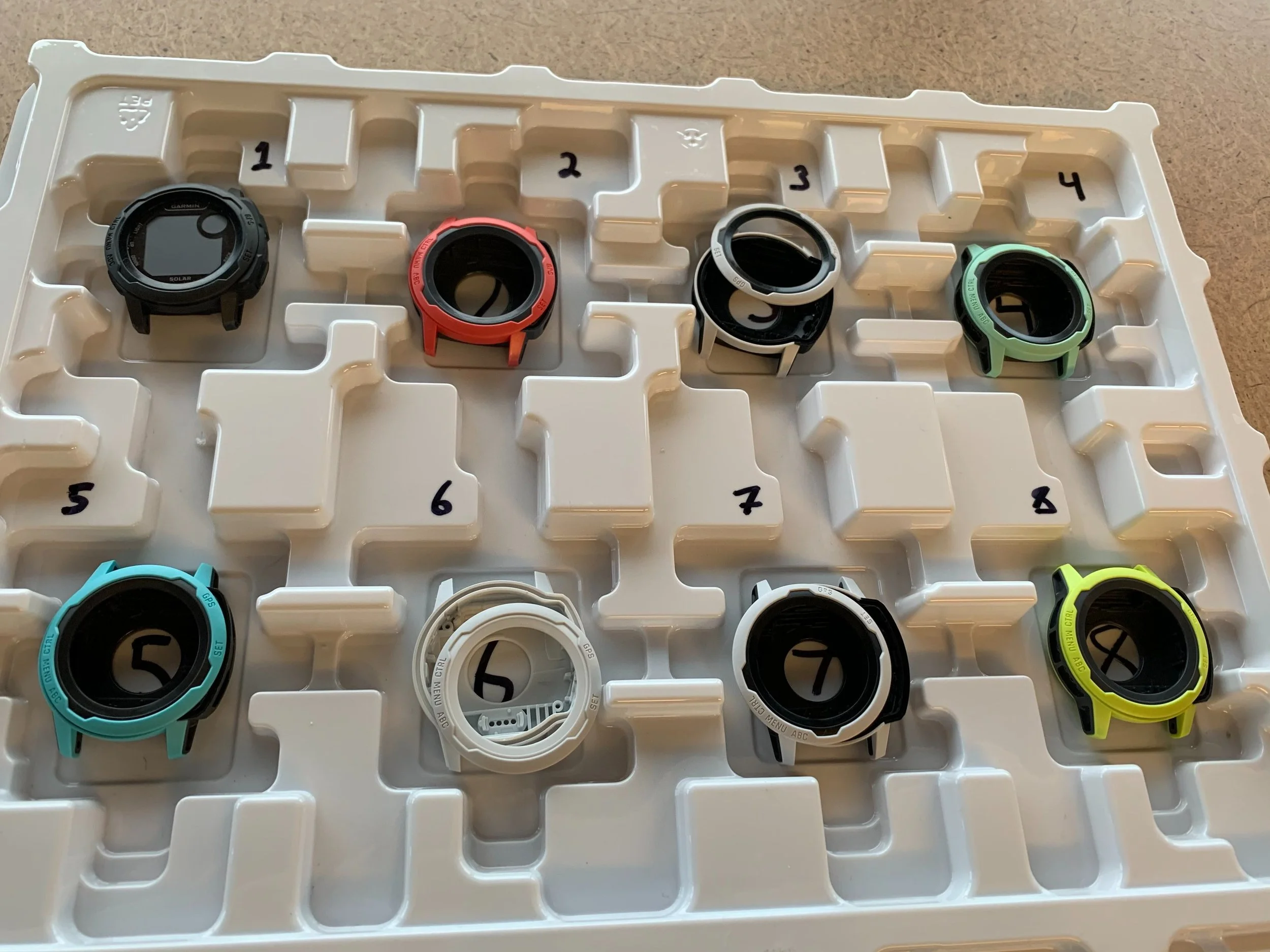

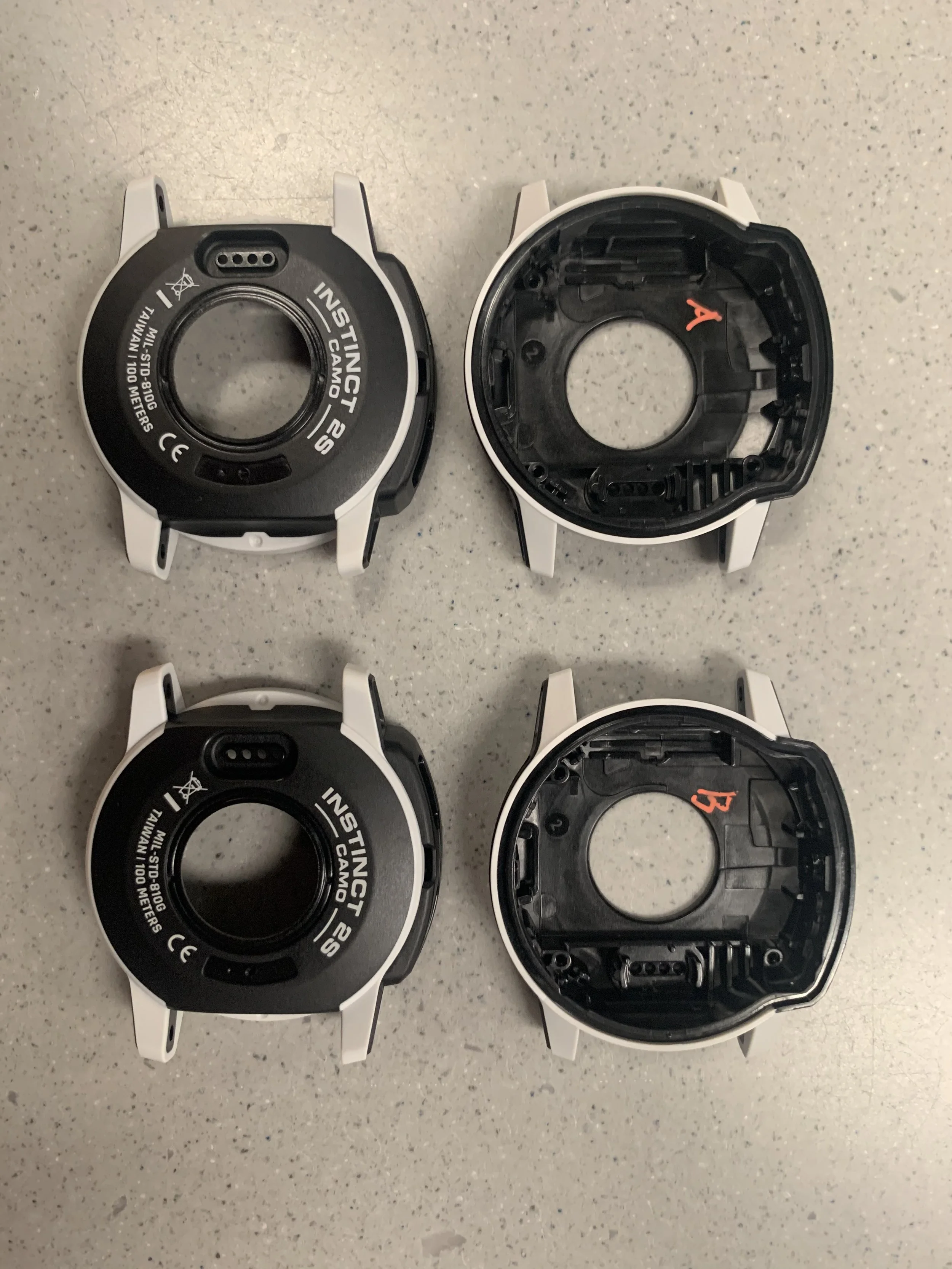

  • CMF Housing Samples

Swapability

QuickFit ready. Designed with a custom integrated band but capable of fitting 20mm hinged bands.

ALTERNATE BEZELS

Utilizing the modular bezel construction, we explored other bezel designs to differentiate SKUs.

BASE SKU

SURF EDITION

CAMO EDITION
